ツイン5本スポーク金型鍛造ニューバージョン。

  1. AVS MODEL T5の後継、ツイン5本スポークのオリジナル・デザイン「AVS VS5」から数えて4代目モデル。
  2. 4つの金型を使用し精密にデザイン・ディテールを再現した、金型鍛造1ピースモデル。
  3. ツインスポークのスプリット角を大胆に広げた斬新なデザイン。 広角スプリット側のスポーク側面にのみサイドカットを施す。
  4. スポーク天面及びサイドカット部分を塗装後にダイヤモンドカット処理再加工し、鍛造素材の輝きをアピールするとともに存在感を明確に主張する。
  5. スポーク間のリム部分に、3次元マシニング加工機により「AVS MODEL F50」「FORGED」「JAPAN MADE」のロゴを彫り込むことにより、AVSブランドが持つプレミアム性を格段にアップ。
  6. センターオーナメントもアルミ鍛造製文字色指しを奢り、リング部分も削出しのアルミ素材にクロームメッキを施した妥協のない仕様。
ロゴ文字もすべて3次元加工機によって彫り込まれる。鍛造工程による文字表現は、そのディテールがどうしても明瞭性に欠け、鍛造製法のネックともいえる部分であった。それを根本的に解決するのが3次元加工機による彫り込みの手法だ。MODEL F50はスポーク天面も全面ダイヤモンドカットが施されるため、この文字の明確なコントラストは商品のプレミアム性を上げるためには必要不可欠な要素でもある。
スポーク部分のサイドカットは、3次元加工機により金型鍛造後の工程により掘り込まれる。このMODEL F50では、塗装後にまったく同じ加工プログラムにより正確にサイドカット部分をなぞる形で塗装部分を削り落としアルミ地を露出させている。正確な3次元加工はメイド・イン・ジャパンの技術力の高さの証でもある
F50のFACEは、F-1、F-2、F-3の3種類がスポークコンケイブの違いにより設定されてる。フラットなイメージのF-1から迫力のF-3まで、約10mmずつホイールのセンター部分が下がっていく設計である。幅とインセット、そしてキャリパークリアランスにより綿密な設定がなされている。

New Twin 5-spoke Mold-Form Forged Version.

  1. The 5th model since the advent of the AVS VS5 and the successor to AVS MODEL T5, with the original twin 5-spoke design.
  2. Use of four molds ensures precise replication of design details in this mold-forged one-piece model.
  3. The new design uses a wider split in the twin spokes. Side cuts are made on the spoke surface only at the widest point between the spokes.
  4. The outside surfaces of the spokes and the side cut areas receive a diamond-cut finishing process after painting. This enhances the appeal of forged materials and gives the wheels a bolder, more assertive presence.
  5. 3D machining is used to carve AVS MODEL F50, FORGED, and JAPAN MADE logos on the sides of the rim between the spokes, highlighting the premium image of the AVS brand.
  6. The luxurious center ornament is also forged from aluminum (with colored letters). The ring portion consists of chrome plating on the milled aluminum surface, perfectly capturing the AVS no-compromise approach to design.
All the letters of the logos are embossed with 3D milling machines. Its difficult to produce clear letters in the forging process, which creates a bottleneck in production. To overcome this, YOKOHAMA relies on 3D milling machines to emboss the letters. All the spokes on MODEL F50 wheels have diamond-cut faces so letters have the clear contrast so essential to wheels of such a premium caliber.
The side cuts on the spokes are done with a 3D milling machine after the mold form forging process is finished. On MODEL F50 wheels, the milling is done after enameling, making the side cuts stand out by showing the wheels bright aluminum finish. The precise 3D milling is another testimony of the high quality of Made In Japan.
F50 wheels have F-1, F-2, and F-3 faces, each of which has a different degree of concave to the spokes. F-1 seems flat, and the F-3 seems to draw you in with approximately 10mm difference in center depth. Width, inset, and caliper clearance all must be meticulously engineered to create these precision wheels.

AVS MODEL F50 for Japanese Cars

RIM
SIZE
(INCH×W)
PCD
(mm)
IN SET
(mm)
HUB
(mm)
FACE PRICE(税別)
グロスブラック
コンビ
プラチナブラック
コンビ
プラチナレッド
コンビ
プラチナブルー
コンビ
GBC PBC PRC BLC
19X8.5J 114.3 51 73 F-1 101,200[税込] 104,500[税込] - 101,200[税込]
43 73 F-1 101,200[税込] 104,500[税込] - -
19X9.0J 114.3 40 73 F-2 103,400[税込] 106,700[税込] - 103,400[税込]
19X9.5J 114.3 50 73 F-2 105,600[税込] 108,900[税込] - -
19X10.0J 114.3 45 73 F-3 107,800[税込] 111,100[税込] - 107,800[税込]
35 73 F-3
20X8.5J 114.3 38 73 F-1 119,900[税込] 123,200[税込] - -
20X9.0J 114.3 ▲40 67.1 F-1 122,100[税込] 125,400[税込] 122,100[税込] -
120 ▲32 72.5 F-2 - -
20X9.5J 114.3 50 73 F-2 124,300[税込] 127,600[税込] - -
30 73 F-2 - -
20X10.0J 114.3 45 73 F-2 126,500[税込] 129,800[税込] - -
35 73 F-3 - -
120 ▲35 72.5 F-3 - -
20X11.0J 114.3 ▲40 67.1 F-3 130,900[税込] 134,200[税込] 130,900[税込] -
15 73 F-3 - -
20X12.0J 114.3 20 73 F-3 135,300[税込] 138,600[税込] - -
  1. カラー:
    GBC:グロスブラックコンビ
    PBC: プラチナブラックコンビ
    PRC: プラチナレッドコンビ
    BLC: プラチナブルーコンビ
  2. 消費税率は、10%となります。

  3. PCD; Φ114.3/120, 5HOLE(M14), BORE径: Φ73(一部サイズ Φ67.1及びΦ72.5)
  4. FACEは、F-1<F-2<F-3の順でスポークコンケーブが強くなります。
  5. ▲は、フェラーリ及びBMWと同じサイズになります。

  1. Colors:
    GBC:Gloss Black Combi
    PBC:Platinum Black Combi
    PRC:Platinum Red Combi
    BLC:Platinum Blue Combi
  2. PCD; Φ114.3/120, 5Hole(M14), Bore: Φ73(Φ67.1 or Φ72.5)
  3. F-1, F-2, and F-3 indicate depth of concave, F-1 is shallowest and F-3 is deepest.
  4. ▲mark is same size as Ferrari or BMW.

Color variations

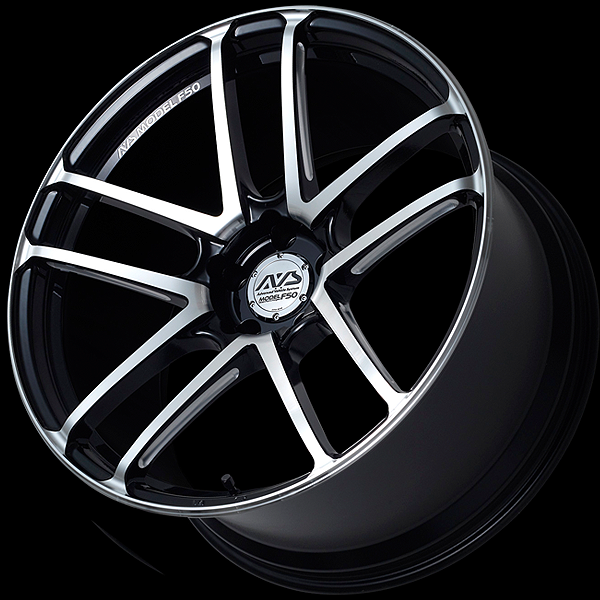

GBC:Gloss Black Combi
GBC:Gloss Black Combi
PBC:Platinum Black Combi
PBC:Platinum Black Combi
PRC:Platinum Red Combi
PRC:Platinum Red Combi
BLC:Platinum Blue Combi
BLC:Platinum Blue Combi
LEXUS GS tuned by HKS   GLOSS BLACK COMBI
LEXUS GS tuned by HKS
GLOSS BLACK COMBI
LEXUS GS tuned by HKS   GLOSS BLACK COMBI
LEXUS GS tuned by HKS
GLOSS BLACK COMBI
LEXUS GS tuned by HKS   GLOSS BLACK COMBI
LEXUS GS tuned by HKS
GLOSS BLACK COMBI
※画像は各チューナー様による装着の一例です。
車検・点検への適合を保証するものではありません。
